PCB Design
Technical Capabilities
No. of layers: 18
Materials : Isola, Iteq, Shengyi, Arlon, Ventec, Rogers
Board sizes: 575mm X 762mm
Board Thickness: 0.6mm – 10mm
Mask Color: Green, Blue, Red, Black, etc.
Legend Color: White, Red, Blue, Yellow, etc.
Surface Finishing: OSP, HASL LF, ENIG, HARD GOLD, & SOFT GOLD
Min. Trace Width: 0.1mm
Min. Hole size: 0.1mm
Min. Gap spacing: 0.1mm
Feed Through Card

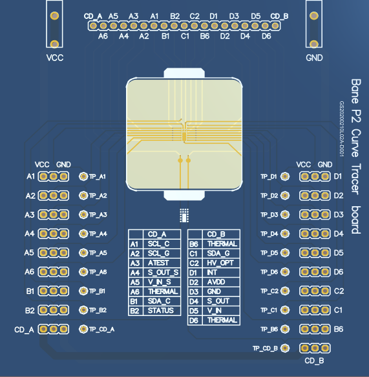

Hand Test Board

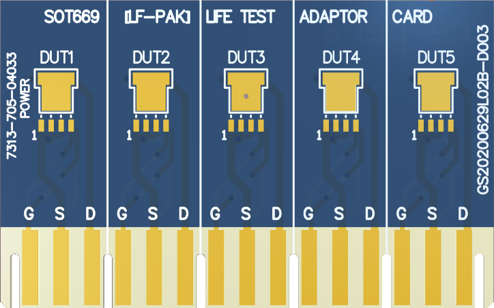

Mounting Card

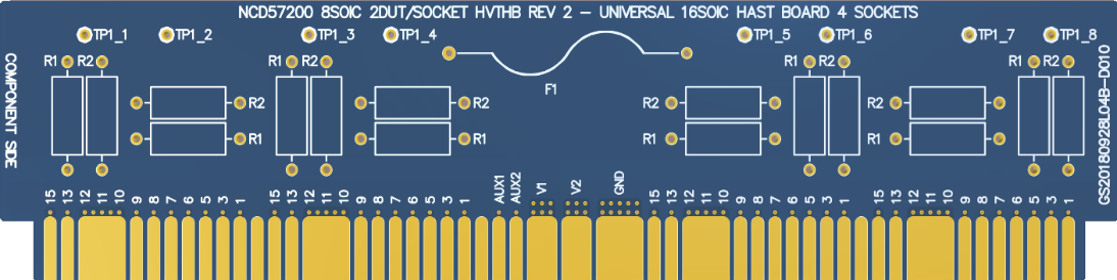

Program Card

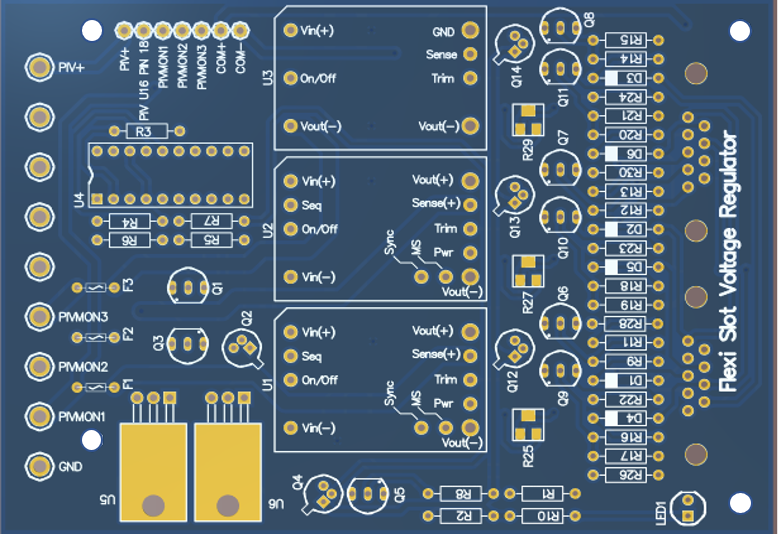

Quick Turn PCB

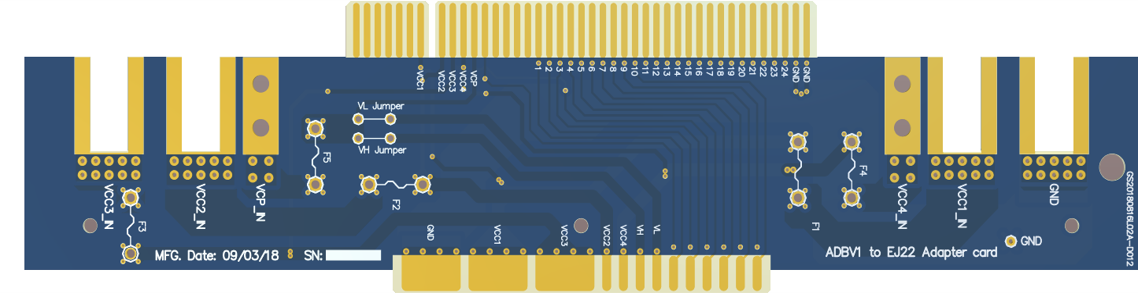

Adapter Card

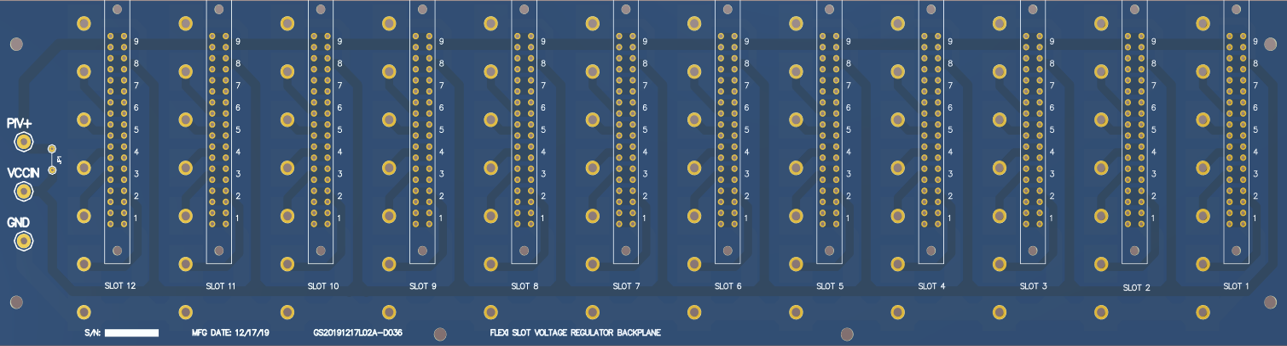

Backplane Board
